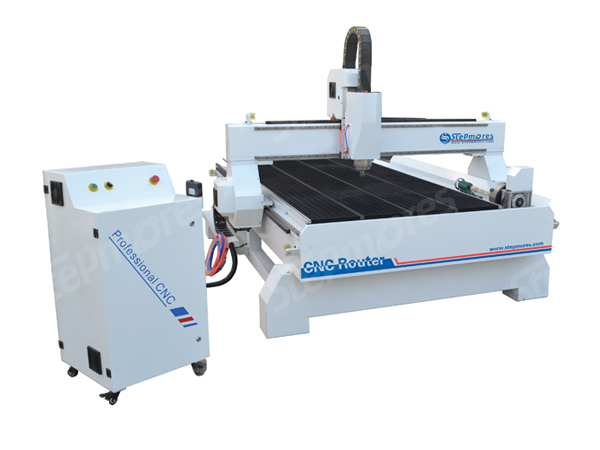

4axis Rotary 1325R
| Working size | 1300x2500x200mm |
| Feeding height | 200mm |
| Table size | 1300*2500mm |
| Rotary device size | diameter: 200mm / length: 2000mm |
| rotary device motor | servo |
| Spindle power | 4.5kw air cooling (0-18000RPM) or 4.5kw water cooling (0-24000RPM) |
| Rail type | linear rails |
| Control system | 4axis Mach3 or 4axis DSP (A18) |
| Drive type | EASY SERVO |
| Transmit | XY gear rack and Z ballscrew |
| Table type | Vacuum absorption with T slot clamping |
| Max travel speed | 35000mm/min |
| Working precision | 0.05mm |
| Power | AC380V±10% / 50~60Hz |
| Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc |
| Command code | HPGL, G code |
| Machine / packing size | 3.05*2*2.62m/3.16*2.28*1.86m |
| Net / Gross weight | 1600kg / 1800kg |
